Model: EKDB7S
EKDB7S Single Phase 125A Metal Distribution Board
Inquire
● Standard: IEC 61439-3
● Main Switch: 125A Isoator Switch
● Installation: Surface mounted
● Circuit options: 4, 6, 8, 12, 16, 24 three-phase outgoing circuits
● Operating temperature: -5°C to 40°C

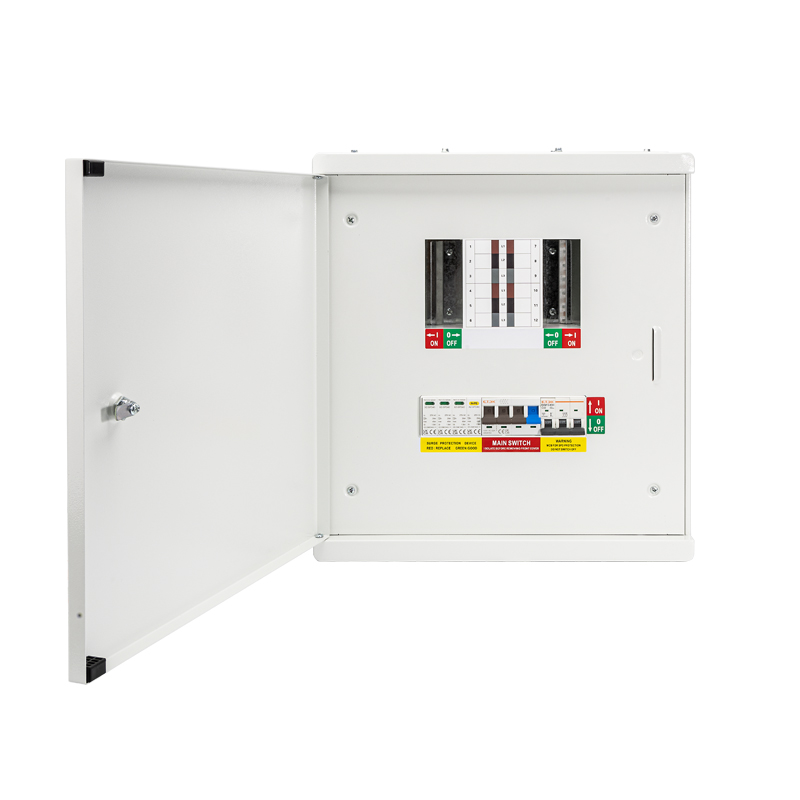

EKTPN Three-Phase Distribution Board is engineered for safe and efficient electrical power management in commercial and industrial settings. Compliant with IEC/EN 61439-3 standards, this TP&N (Triple Pole and Neutral) distribution board offers robust protection and flexibility for various circuit configurations.
Available with 4, 6, 8, 12, 16, or 24 outgoing circuit options and a 125A main isolator switch, the EKTPN features:
Fully enclosed steel housing with IP2XC ingress protection and powder-coated finish (RAL7035)
Lock and key for added security
Complete shrouding of main incomer and busbar links
Double screw terminals for secure main connections
Removable top and bottom gland plates for easy cable entry
Keyhole mounting for simplified installation
Neutral and earth terminals on both sides
Integrated Type 2 40kA surge protection and 3P B32 MCB
Compatible with MCB, RCBO, AFDD protective devices
Applications include commercial buildings, factories, warehouses, and any environment demanding dependable three-phase power distribution with advanced safety features.
| Standard | IEC 61439-3 |
| No. of phase | Three phase |
| Voltage rating | AC380V/415V, 50/60Hz |
| Current Capacity | 125A (Isolator Switch) |
| Installation | Surface-mounted |
| Configuration | 4, 6, 8, 12, 16, 24 |
| Manufacturing material | Steel |
| Ingress protection | IP2XC |
| Steel sheet Thickness | 1.2mm |
| Surface finishing | Powder coated with electrostatic Epoxy polyester (RAL7035) |
| Operational temperature range | -5°C to 40°C |

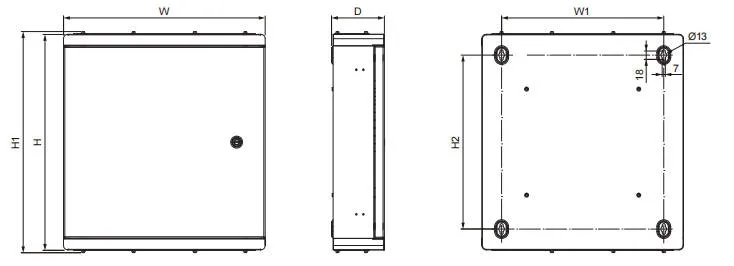

| Ref No. | W | H | D | H1 | W1 | H2 |
| EKTPN04 | 460 | 492 | 120 | 505 | 370 | 397 |
| EKTPN06 | 460 | 546 | 120 | 559 | 370 | 451 |
| EKTPN08 | 460 | 600 | 120 | 613 | 370 | 505 |
| EKTPN12 | 460 | 708 | 120 | 721 | 370 | 613 |
| EKTPN16 | 460 | 806 | 120 | 829 | 370 | 721 |
| EKTPN24 | 460 | 1032 | 120 | 1045 | 370 | 937 |
| EKTPN04-ISM125 | 4 Ways with 4 Pole 125A Main Switch & Type 2 40kA Surge Protection Device & 3P 32A MCB |
| EKTPN06-ISM125 | 6 Ways with 4 Pole 125A Main Switch & Type 2 40kA Surge Protection Device & 3P 32A MCB |
| EKTPN08-ISM125 | 8 Ways with 4 Pole 125A Main Switch & Type 2 40kA Surge Protection Device & 3P 32A MCB |
| EKTPN12-ISM125 | 12 Ways with 4 Pole 125A Main Switch & Type 2 40kA Surge Protection Device & 3P 32A MCB |
| EKTPN16-ISM125 | 16 Ways with 4 Pole 125A Main Switch & Type 2 40kA Surge Protection Device & 3P 32A MCB |
| EKTPN24-ISM125 | 24 Ways with 4 Pole 125A Main Switch & Type 2 40kA Surge Protection Device & 3P 32A MCB |
