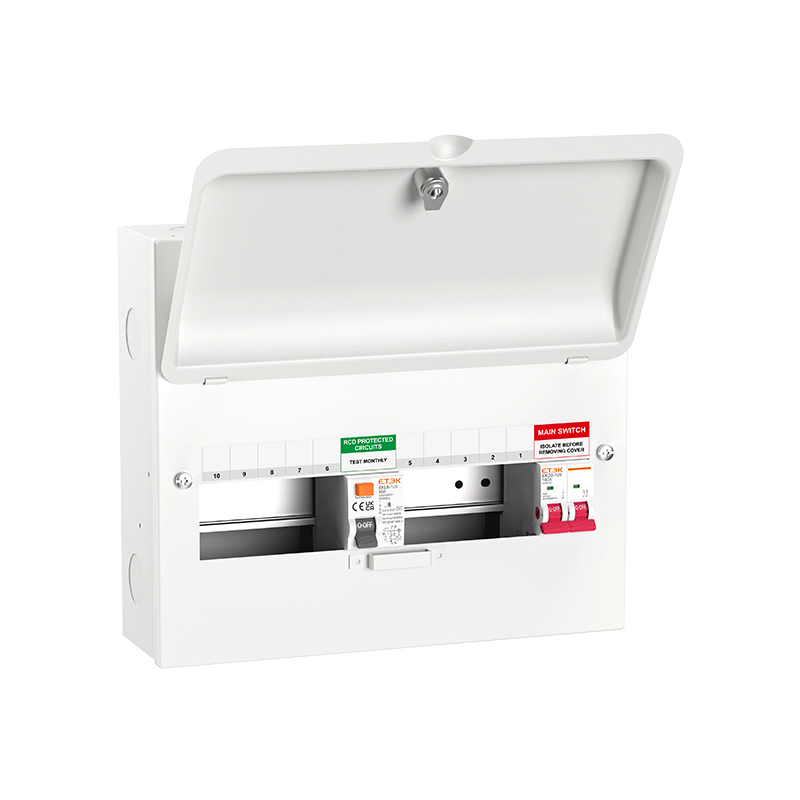

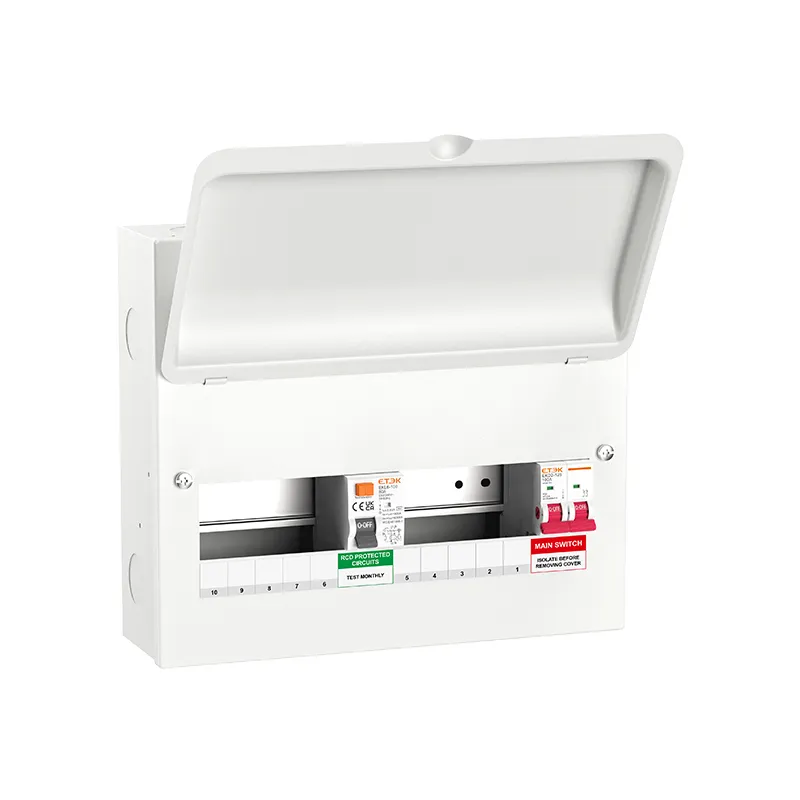

EKDB16S-IR Split Load Consumer Unit (Main Switch & RCCB) 10–24 Ways

Split‑load metal consumer unit with 100A DP main switch and 80A DP RCCB. Dual busbar sections for cost‑effective circuit grouping. 10–24 ways, BS EN 61439‑3 compliant.

● Standards: BS EN 61439‑3.
● Enclosure: Non‑combustible steel, hinged door; EKDB16S standard / EKDB16SL with integrated lock.
● Incomer: 100A DP main switch (isolator).
● Pre‑fitted device: 1× RCD 80A (Type A, 1P+N)
● Ways: 10, 14, 18, 24 single‑row
● Enclosure: non‑combustible steel; SL versions with integrated door lock
● Terminal bars: Top‑mounted, color‑coded N and E.

Inquire NOW PDF(Document currently available in English only)

EKDB16S-IR Split Load Consumer Unit (Main Switch & RCCB) 10–24 Ways

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

The Split Load configuration separates circuits across two sections: a 100A DP main‑switch side and an 80A DP RCCB‑protected side. This cost‑efficient layout helps isolate nuisance‑tripping circuits while keeping essential services running. The steel enclosure, compliant with BS EN 61439‑3, provides a clean internal layout with top‑mounted color‑coded bars, supported DIN rail, and installer‑friendly captive screws. SL versions offer an integrated door lock.

Q1: How should I allocate circuits?
A1: Place higher‑risk socket and exterior circuits under the RCCB; critical lighting/IT circuits often run on main‑switch side with RCBOs.

Q2: Can I mix MCBs and RCBOs?
A2: Yes. RCBOs are recommended for critical circuits to reduce nuisance trips.

Q3: What are the dual busbar counts per size?
A3: See spec table; e.g., 18‑way uses 2×8 pins.

Technical parameters

Product selection form

Ref No. Ref No. (with lock) Box size Main switch RCD Busbar pins Free ways
EKDB16S10-IR EKDB16S10L-IR 10 DP 100A DP 80A 2x4 6
EKDB16S14-IR EKDB16S14L-IR 14 DP 100A DP 80A 2x6 10
EKDB16S18-IR EKDB16S18L-IR 18 DP 100A DP 80A 2x8 14
EKDB16S24-IR EKDB16S24L-IR 24 DP 100A DP 80A 2x11 20

Download Files

Document currently available in English only.
Document Type
Document Name
Size
Product Catalog
EKDB16S(L) Consumer Unit
2.82MB

Porduct Overview

The Split Load configuration separates circuits across two sections: a 100A DP main‑switch side and an 80A DP RCCB‑protected side. This cost‑efficient layout helps isolate nuisance‑tripping circuits while keeping essential services running. The steel enclosure, compliant with BS EN 61439‑3, provides a clean internal layout with top‑mounted color‑coded bars, supported DIN rail, and installer‑friendly captive screws. SL versions offer an integrated door lock.

Q1: How should I allocate circuits?
A1: Place higher‑risk socket and exterior circuits under the RCCB; critical lighting/IT circuits often run on main‑switch side with RCBOs.

Q2: Can I mix MCBs and RCBOs?
A2: Yes. RCBOs are recommended for critical circuits to reduce nuisance trips.

Q3: What are the dual busbar counts per size?
A3: See spec table; e.g., 18‑way uses 2×8 pins.

Technical parameters

Download Files

Recommend Products

EKDB16S(L)-R
Model: EKDB16S(L)-R

EKDB16S-R RCD Incomer Sub‑Board — 4 to 10 Ways, No Main Switch

Inquire
EKDB16S(L)-IRS
Model: EKDB16S(L)-IRS

EKDB16S-IRS Split Load with Type 2 SPD 40 kA — 14 to 24 Ways

Inquire
EKDB16S(L)-ISM
Model: EKDB16S(L)-ISM

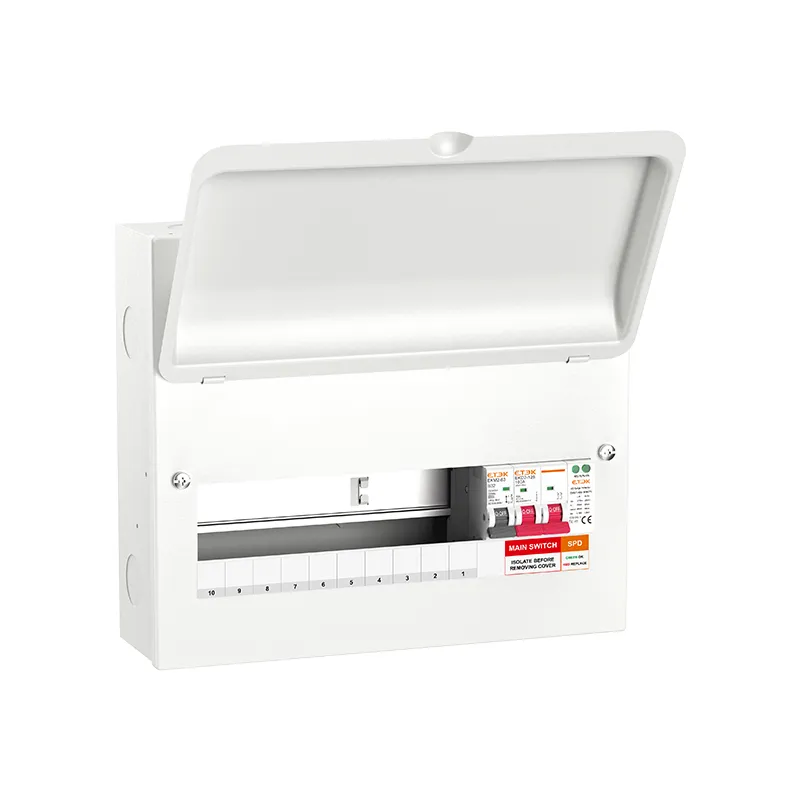

EKDB16S-ISM Main Switch with Type 2 SPD 40 kA and Pre‑fitted MCB B32 — 10 to 24 Ways

Inquire
EKDB16S(L)-IS
Model: EKDB16S(L)-IS

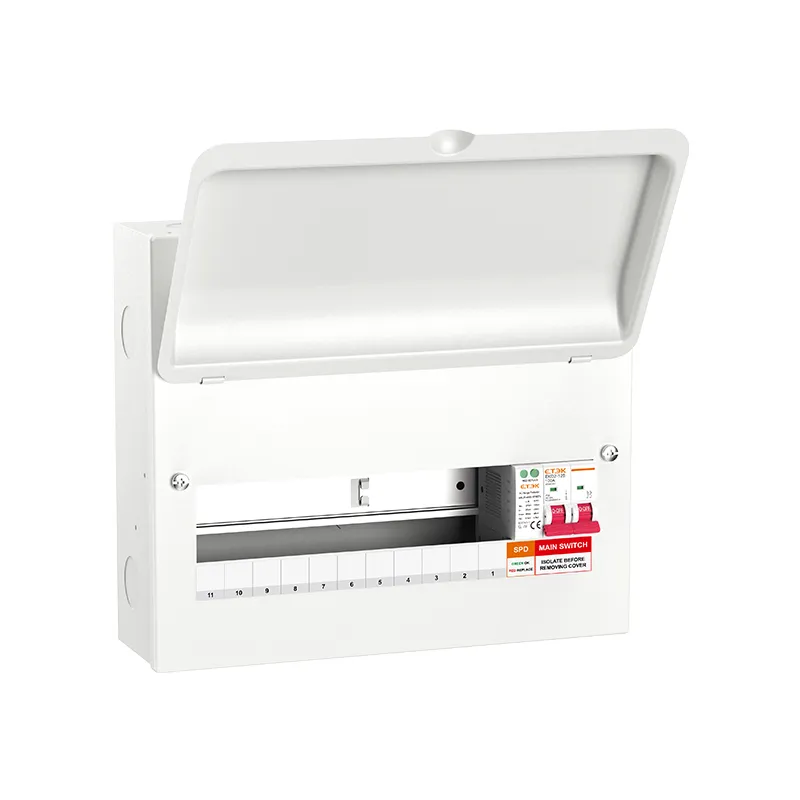

EKDB16S-IS Main Switch Consumer Unit with Type 2 SPD 40 kA — 10 to 24 Ways
