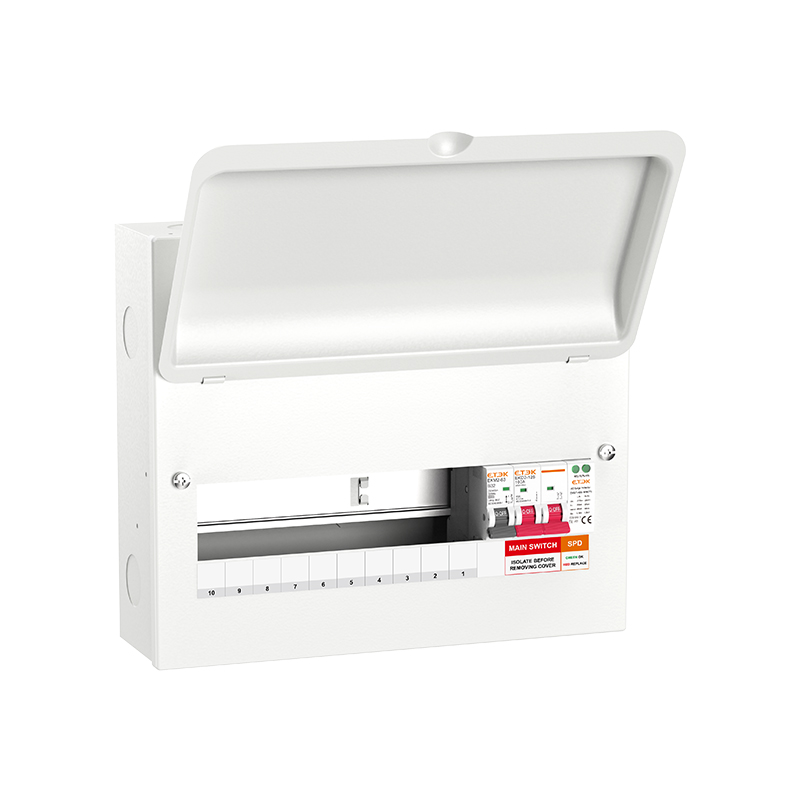

EKDB16S-ISM Main Switch with Type 2 SPD 40 kA and Pre‑fitted MCB B32 — 10 to 24 Ways

BS EN 61439-3 metal consumer unit combining a 100A DP main switch, factory‑fitted Type 2 SPD 40 kA, and pre‑installed B32 MCB. 10–24 ways, faster installs, tidy wiring, optional lockable door.

● Standards: BS EN 61439‑3.

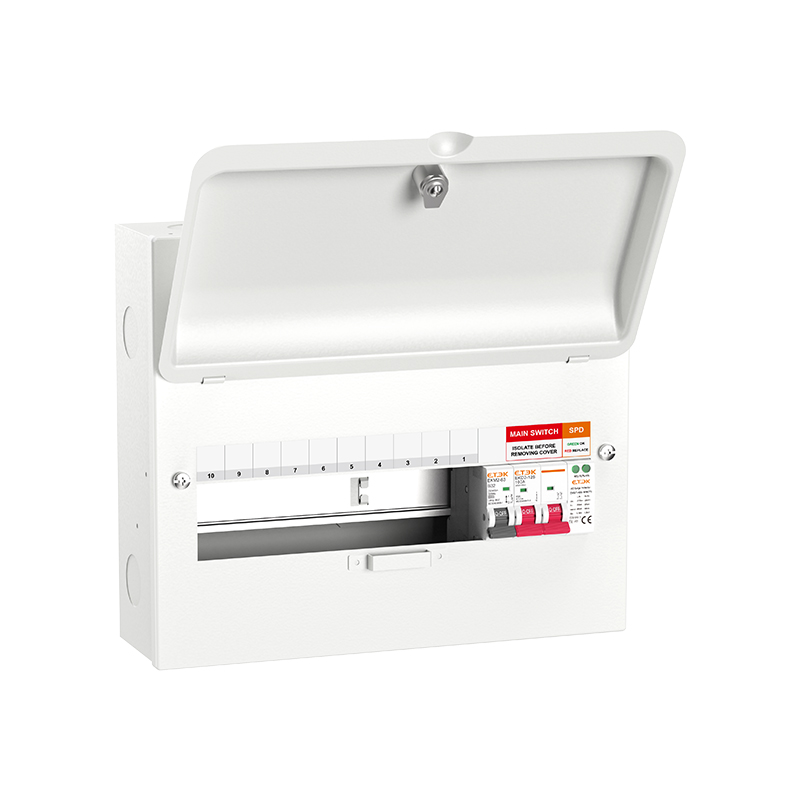

● Enclosure: Non‑combustible steel, hinged door; EKDB16S standard / EKDB16SL with integrated lock.
● Incomer: 100A DP main switch (isolator).
● Surge Protection: Type 2 SPD, 40 kA
● Pre‑fitted device: 1× MCB B32 (B‑curve, single‑pole)
● Ways: 10, 14, 18, 24 single‑row
● Enclosure: non‑combustible steel; SL versions with integrated door lock
● Terminal bars: Top‑mounted, color‑coded N and E.

Inquire NOW PDF(Document currently available in English only)

EKDB16S-ISM Main Switch with Type 2 SPD 40 kA and Pre‑fitted MCB B32 — 10 to 24 Ways

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

This configuration delivers a ready‑to‑wire surge‑protected incomer with a pre‑installed B‑curve 32 A MCB. The integrated Type 2 SPD 40 kA safeguards downstream circuits against transient overvoltages, while the fitted B32 MCB saves assembly time and ensures a coordinated protection scheme from day one. The steel enclosure meets BS EN 61439‑3 and speeds up installation with top‑mounted color‑coded N/E bars, a removable DIN rail, backed‑out captive screws, and a support T‑bar. SL variants add an integrated door lock for secure access.

FAQs

Q1: Can I replace the B32 MCB with another rating?
A1: Yes, the pre‑fitted B32 can be replaced by a suitably rated MCB as required by your design.

Q2: Does the pre‑fitted MCB reduce available ways?
A2: It occupies one outgoing way. See the free‑ways values in the spec table.

Q3: Is the SPD module replaceable?
A3: Yes. The Type 2 module includes a status window and can be replaced at end‑of‑life.

Q4: Are RCBOs supported on the remaining ways?
A4: Yes, the board accepts RCBOs and AFDDs downstream of the main switch.

Technical parameters

Product selection form

Ref No. Ref No. (with lock) Box size Main switch SPD MCB Busbar pins Free ways
EKDB16S10-ISM EKDB16S10L-ISM 10 DP 100A T2 40kA SP B32 8 6
EKDB16S14-ISM EKDB16S14L-ISM 14 DP 100A T2 40kA SP B32 12 10
EKDB16S18-ISM EKDB16S18L-ISM 18 DP 100A T2 40kA SP B32 16 14
EKDB16S24-ISM EKDB16S24L-ISM 24 DP 100A T2 40kA SP B32 22 20

Download Files

Document currently available in English only.
Document Type
Document Name
Size
Product Catalog
EKDB16S(L) Consumer Unit
2.82MB

Porduct Overview

This configuration delivers a ready‑to‑wire surge‑protected incomer with a pre‑installed B‑curve 32 A MCB. The integrated Type 2 SPD 40 kA safeguards downstream circuits against transient overvoltages, while the fitted B32 MCB saves assembly time and ensures a coordinated protection scheme from day one. The steel enclosure meets BS EN 61439‑3 and speeds up installation with top‑mounted color‑coded N/E bars, a removable DIN rail, backed‑out captive screws, and a support T‑bar. SL variants add an integrated door lock for secure access.

FAQs

Q1: Can I replace the B32 MCB with another rating?
A1: Yes, the pre‑fitted B32 can be replaced by a suitably rated MCB as required by your design.

Q2: Does the pre‑fitted MCB reduce available ways?
A2: It occupies one outgoing way. See the free‑ways values in the spec table.

Q3: Is the SPD module replaceable?
A3: Yes. The Type 2 module includes a status window and can be replaced at end‑of‑life.

Q4: Are RCBOs supported on the remaining ways?
A4: Yes, the board accepts RCBOs and AFDDs downstream of the main switch.

Technical parameters

Download Files

Recommend Products

EKDB16S(L)-IRS
Model: EKDB16S(L)-IRS

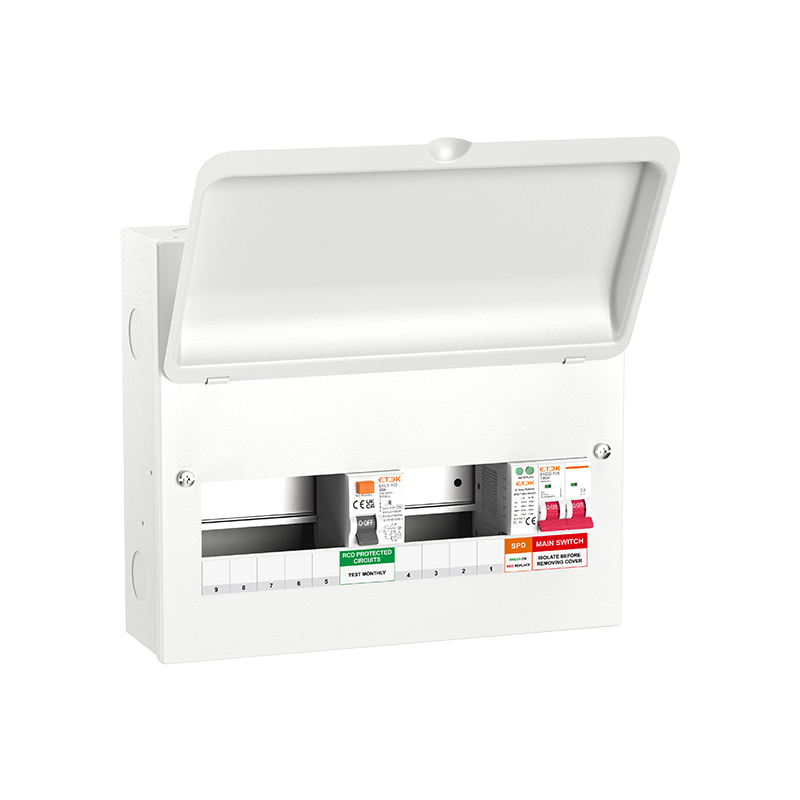

EKDB16S-IRS Split Load with Type 2 SPD 40 kA — 14 to 24 Ways

Inquire
EKDB16S(L)-IR
Model: EKDB16S(L)-IR

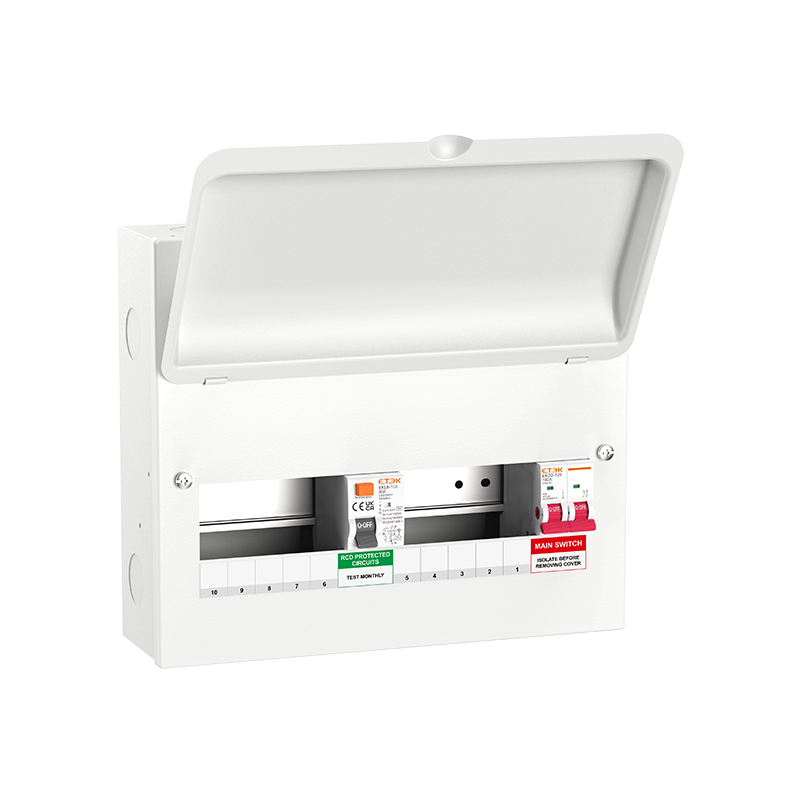

EKDB16S-IR Split Load Consumer Unit (Main Switch & RCCB) 10–24 Ways

Inquire
EKDB16S(L)-IS
Model: EKDB16S(L)-IS

EKDB16S-IS Main Switch Consumer Unit with Type 2 SPD 40 kA — 10 to 24 Ways

Inquire
EKDB16S-DI2R
Model: EKDB16S-DI2R

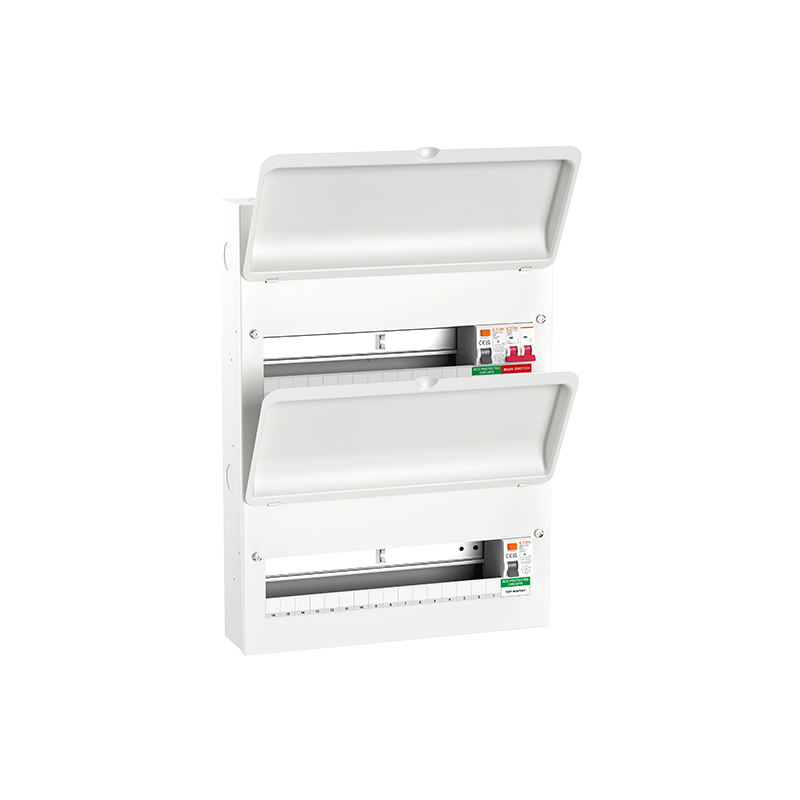

EKDB16S-DI2R Double-row Dual RCD Consumer Unit — 28 & 36 Ways
