5-Way IP65 Plastic Waterproof Distribution Box (DIN-Rail Enclosure)

EKDB13-5 is a 5-module waterproof distribution box made from durable PC engineering plastics, providing excellent mechanical strength and weather resistance. Designed to meet international IEC standards, it offers reliable protection for electrical equipment in industrial, commercial, photovoltaic (PV) and other indoor or outdoor applications.

• IP65 protection degree for reliable indoor/outdoor waterproof protection

• IK08 impact rating for enhanced mechanical durability

• 125A current capacity for demanding distribution needs

• PC engineering plastics: strong and weather-resistant enclosure material

• Surface mounting installation for easy deployment

• Customizable cable entry holes (customer customized)

• High fire resistance: 960°C / 30s

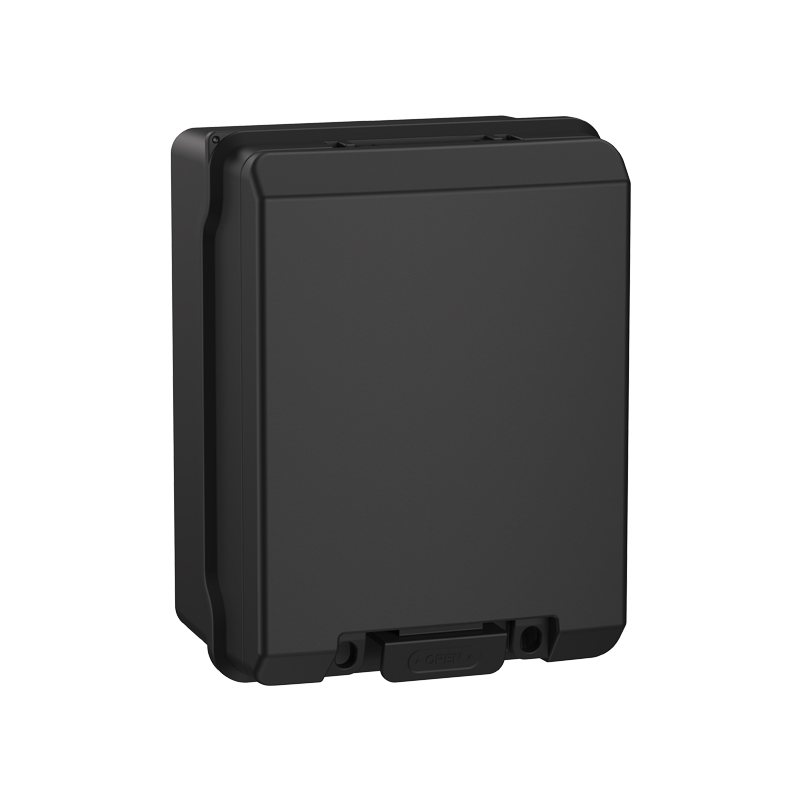

• Color options: Grey (RAL 7035) base & frame (black available); transparent cover (black opaque available)

FAQ

Q: What's the difference between EKDB13-5 and EKDB13-5T?
A: The EKDB13-5T includes a pre-installed terminal block for neutral and earth connections, making installation faster and more convenient. The standard EKDB13-5 provides a clean enclosure without terminals for custom configurations.

Q: Can this box handle outdoor weather conditions year-round?
A: Absolutely! With IP65 waterproof rating and UV-stabilized PC material, the EKDB13-5 is designed for permanent outdoor installation. It operates reliably in temperatures from -25°C to +55°C and withstands rain, snow, dust, and UV radiation.

Q: What size circuit breakers can I install?
A: The 5-way configuration accommodates standard DIN rail mounted MCBs up to 125A. You can install single-pole, double-pole, or triple-pole breakers depending on your application requirements.

Q: How do I customize the cable entry holes?
A: ETEK provides custom cable entry hole drilling based on your specific requirements. Simply provide us with your cable sizes, quantities, and preferred positions when placing your order.

Q: Is this suitable for solar PV installations?
A: Yes! The EKDB13-5 is ideal for solar PV systems. Its UV-resistant material, waterproof design, and high current capacity make it perfect for DC combiner boxes, AC disconnect boxes, and string monitoring applications.

Q: Can I get different colors or transparent vs. opaque covers?
A: Yes! We offer:
Frame Colors: Standard Grey (RAL 7035) or Black
Cover Options: Transparent (for easy visual inspection) or Black Opaque (for UV-sensitive equipment)

Technical Data

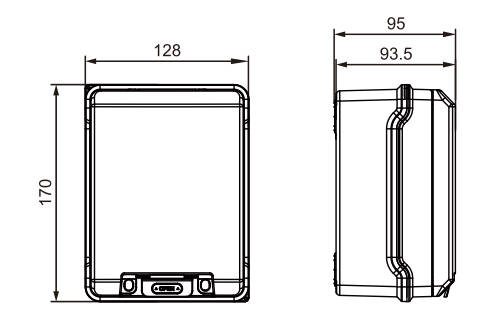

Dimensions
