Product Profile

Electrical Rating	100A/single phase,63A/three phase,240/415V AC 50/60Hz
Protection Degree	IP40
Material	Shell: ABS, ABS-UV Fire-proof
Material	Door: Transparent PC
Method of Installation	Surface-Mounted and Flush-Mounted

Technical Data

1. General Type-Full Plastic

1.1 Surface-Mounted type

Model No.				Ways	Dimension(mm)			Speciﬁcation of N terminal
ABS	Code	ABS-UV	Code	Ways	L	W	H	W*H	Screw Qty	Bar Qty
EKDB2S2	601101	EKDB2S2V	601201	2	49	130	85
EKDB2S3	601102	EKDB2S3V	601202	3	94	148	85
EKDB2S4	601103	EKDB2S4V	601203	4	111	200	93	6*8	4	1
EKDB2S6	601104	EKDB2S6V	601204	6	148	200	97	6*8	6	2
EKDB2S8	601105	EKDB2S8V	601205	8	184	200	96	6*8	8	2
EKDB2S10	601106	EKDB2S10V	601206	10	220	200	92	6*8	10	2
EKDB2S12	601107	EKDB2S12V	601207	12	254	200	96	6*8	12	2
EKDB2S15	601108	EKDB2S15V	601208	15	310	200	97	6*8	15	2
EKDB2S18	601109	EKDB2S18V	601209	18	362	219	97	6*8	18	3
EKDB2S24	601110	EKDB2S24V	601210	24 (2x12)	271	324	98	6*8	24	4
EKDB2S36	601111	EKDB2S36V	601211	36 (2x18)	269	457	100	6*8	36	6

1.2 Flush-Mounted type

Model No.				Ways	Dimension(mm)				Speciﬁcation of N terminal
ABS	Code	ABS-UV Code		Ways	L	W	H1	H2	W*H	Screw Qty	Bar Qty
EKDB2F2	601121	EKDB2F2V	601221	2	66	137	85	25
EKDB2F3	601122	EKDB2F3V	601222	3	94	148	85	26
EKDB2F4	601123	EKDB2F4V	601223	4	135	221	87	26	6*8	4	1
EKDB2F6	601124	EKDB2F6V	601224	6	171	221	88	26	6*8	6	2
EKDB2F8	601125	EKDB2F8V	601225	8	208	221	87	26	6*8	8	2
EKDB2F10	601126	EKDB2F10V	601226	10	244	221	86	26	6*8	10	2
EKDB2F12	601127	EKDB2F12V	601227	12	280	221	88	24	6*8	12	2
EKDB2F15	601128	EKDB2F15V	601228	15	334	221	89	29	6*8	15	2
EKDB2F18	601129	EKDB2F18V	601229	18	399	252	86	27	6*8	18	3
EKDB2F24	601130	EKDB2F24V	601230	24 (2x12)	300	341	98	31	6*8	24	4
EKDB2F36	601131	EKDB2F36V	601231	36 (2x18)	300	480	98	31	6*8	36	6

2. Double Rows Terminal Type-Full Plastic (Australia Type)

2.1 Surface-Mounted type

Model No.				Ways	Dimension(mm)			Speciﬁcation of N terminal
ABS	Code	ABS-UV	Code	Ways	L	W	H	W*H	Screw Qty	Bar Qty
EKDB2S4T2	601303	EKDB2S4VT2	601403	4	111	200	93	10*14	8	1
EKDB2S6T2	601304	EKDB2S6VT2	601404	6	148	200	97	10*14	12	2
EKDB2S8T2	601305	EKDB2S8VT2	601405	8	184	200	96	10*14	16	2
EKDB2S12T2	601307	EKDB2S12VT2	601407	12	254	200	96	10*14	24	2
EKDB2S18T2	601309	EKDB2S18VT2	601409	18	362	219	97	10*14	36	3
EKDB2S24T2	601310	EKDB2S24VT2	601410	24 (2x12)	271	324	98	10*14	48	4
EKDB2S36T2	601311	EKDB2S36VT2	601411	36 (2x18)	269	457	100	10*14	72	6

2.2 Flush-Mounted type

Model No.				Ways	Dimension(mm)				Speciﬁcation of N terminal
ABS	Code	ABS-UV	Code	Ways	L	W	H1	H2	W*H	Screw Qty	Bar Qty
EKDB2F4T2	601323	EKDB2F4VT2	601423	4	135	221	87	26	10*14	8	1
EKDB2F6T2	601324	EKDB2F6VT2	601424	6	171	221	88	26	10*14	12	2
EKDB2F8T2	601325	EKDB2F8VT2	601425	8	208	221	87	26	10*14	16	2
EKDB2F12T2	601327	EKDB2F12VT2	601427	12	280	221	88	24	10*14	24	2
EKDB2F18T2	601329	EKDB2F18VT2	601429	18	399	252	86	27	10*14	36	3
EKDB2F24T2	601330	EKDB2F24VT2	601430	24 (2x12)	300	341	98	31	10*14	48	4
EKDB2F36T2	601331	EKDB2F36VT2	601431	36 (2x18)	300	480	98	31	10*14	72	6

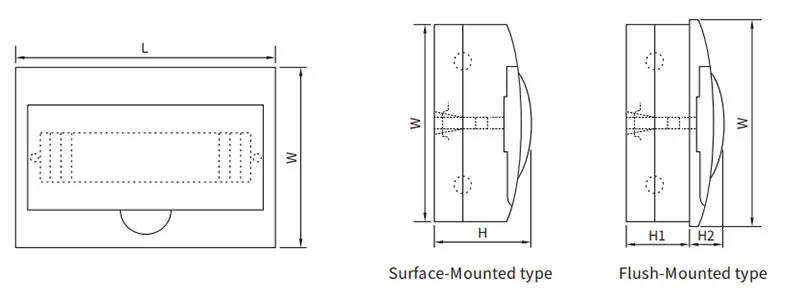

Dimensions

Product selection form

Product Profile

Electrical Rating	100A/single phase,63A/three phase,240/415V AC 50/60Hz
Protection Degree	IP40
Material	Shell: ABS, ABS-UV Fire-proof
Material	Door: Transparent PC
Method of Installation	Surface-Mounted and Flush-Mounted

Technical Data

1. General Type-Full Plastic

1.1 Surface-Mounted type

Model No.				Ways	Dimension(mm)			Speciﬁcation of N terminal
ABS	Code	ABS-UV	Code	Ways	L	W	H	W*H	Screw Qty	Bar Qty
EKDB2S2	601101	EKDB2S2V	601201	2	49	130	85
EKDB2S3	601102	EKDB2S3V	601202	3	94	148	85
EKDB2S4	601103	EKDB2S4V	601203	4	111	200	93	6*8	4	1
EKDB2S6	601104	EKDB2S6V	601204	6	148	200	97	6*8	6	2
EKDB2S8	601105	EKDB2S8V	601205	8	184	200	96	6*8	8	2
EKDB2S10	601106	EKDB2S10V	601206	10	220	200	92	6*8	10	2
EKDB2S12	601107	EKDB2S12V	601207	12	254	200	96	6*8	12	2
EKDB2S15	601108	EKDB2S15V	601208	15	310	200	97	6*8	15	2
EKDB2S18	601109	EKDB2S18V	601209	18	362	219	97	6*8	18	3
EKDB2S24	601110	EKDB2S24V	601210	24 (2x12)	271	324	98	6*8	24	4
EKDB2S36	601111	EKDB2S36V	601211	36 (2x18)	269	457	100	6*8	36	6

1.2 Flush-Mounted type

Model No.				Ways	Dimension(mm)				Speciﬁcation of N terminal
ABS	Code	ABS-UV Code		Ways	L	W	H1	H2	W*H	Screw Qty	Bar Qty
EKDB2F2	601121	EKDB2F2V	601221	2	66	137	85	25
EKDB2F3	601122	EKDB2F3V	601222	3	94	148	85	26
EKDB2F4	601123	EKDB2F4V	601223	4	135	221	87	26	6*8	4	1
EKDB2F6	601124	EKDB2F6V	601224	6	171	221	88	26	6*8	6	2
EKDB2F8	601125	EKDB2F8V	601225	8	208	221	87	26	6*8	8	2
EKDB2F10	601126	EKDB2F10V	601226	10	244	221	86	26	6*8	10	2
EKDB2F12	601127	EKDB2F12V	601227	12	280	221	88	24	6*8	12	2
EKDB2F15	601128	EKDB2F15V	601228	15	334	221	89	29	6*8	15	2
EKDB2F18	601129	EKDB2F18V	601229	18	399	252	86	27	6*8	18	3
EKDB2F24	601130	EKDB2F24V	601230	24 (2x12)	300	341	98	31	6*8	24	4
EKDB2F36	601131	EKDB2F36V	601231	36 (2x18)	300	480	98	31	6*8	36	6

2. Double Rows Terminal Type-Full Plastic (Australia Type)

2.1 Surface-Mounted type

Model No.				Ways	Dimension(mm)			Speciﬁcation of N terminal
ABS	Code	ABS-UV	Code	Ways	L	W	H	W*H	Screw Qty	Bar Qty
EKDB2S4T2	601303	EKDB2S4VT2	601403	4	111	200	93	10*14	8	1
EKDB2S6T2	601304	EKDB2S6VT2	601404	6	148	200	97	10*14	12	2
EKDB2S8T2	601305	EKDB2S8VT2	601405	8	184	200	96	10*14	16	2
EKDB2S12T2	601307	EKDB2S12VT2	601407	12	254	200	96	10*14	24	2
EKDB2S18T2	601309	EKDB2S18VT2	601409	18	362	219	97	10*14	36	3
EKDB2S24T2	601310	EKDB2S24VT2	601410	24 (2x12)	271	324	98	10*14	48	4
EKDB2S36T2	601311	EKDB2S36VT2	601411	36 (2x18)	269	457	100	10*14	72	6

2.2 Flush-Mounted type

Model No.				Ways	Dimension(mm)				Speciﬁcation of N terminal
ABS	Code	ABS-UV	Code	Ways	L	W	H1	H2	W*H	Screw Qty	Bar Qty
EKDB2F4T2	601323	EKDB2F4VT2	601423	4	135	221	87	26	10*14	8	1
EKDB2F6T2	601324	EKDB2F6VT2	601424	6	171	221	88	26	10*14	12	2
EKDB2F8T2	601325	EKDB2F8VT2	601425	8	208	221	87	26	10*14	16	2
EKDB2F12T2	601327	EKDB2F12VT2	601427	12	280	221	88	24	10*14	24	2
EKDB2F18T2	601329	EKDB2F18VT2	601429	18	399	252	86	27	10*14	36	3
EKDB2F24T2	601330	EKDB2F24VT2	601430	24 (2x12)	300	341	98	31	10*14	48	4
EKDB2F36T2	601331	EKDB2F36VT2	601431	36 (2x18)	300	480	98	31	10*14	72	6

EKDB2 TXM Series Plastic Distribution Box

The Distribution Box is used for Terminal power distributing system; The Distribution Box are completed with Din-rail 35mm and Neutral Terminal; Electrical Rating: 100A/single phase,63A/three phase,240/415V AC 50/60Hz
