Pushbutton Switches: Understanding How They Work, Types and Selection Considerations

Publish Time: Author: ETEK Electric Visit: 76 Share:

Pushbutton switches play a vital role in modern electronic equipment and mechanical systems. This versatile electrical switch opens or closes circuits with a simple push of a button, allowing for efficient control of equipment. In this article, we will delve into the working principle of pushbutton switches, their main types and their selection points, and introduce the features of the EKPB2 series of pushbutton switches in detail, in order to help customers better understand and apply these key components.



Operating Principle

The basic operating principle of a pushbutton switch is to change the state of the switch from open to closed by pressing a button. When the pushbutton is pressed, the internal spring mechanism compresses and the metal contacts make contact, creating a complete circuit and the flow of current. This design not only ensures the reliability of the switch, but also significantly improves the user experience. The internal structure of a switch typically consists of contacts, springs and a housing, and can be designed to enable single- or double-pole contacts to suit different circuit configurations. Additionally, many switches are dust and water resistant, enhancing service life in extreme environments.



Types and Applications

Pushbutton switches can be categorised into a variety of types depending on the requirements and application scenarios:

1. Momentary vs. Hold: Momentary switches are used for operations that require constant pressure, while hold types are suitable for situations that do not require constant pressure.

2. Locking switches: This type of switch prevents misuse and can be locked in a certain state to ensure safety.

3. Multi-function switches: Combining multiple functions, these switches are suitable for the control of complex equipment.

4. Wireless Pushbutton Switch: Using wireless technology to achieve remote control, suitable for modern smart home.

5. Lighted vs. non-lighted: Lighted models are used to indicate device status, while non-lighted models are suitable for space-constrained applications.

6. Industrial vs. consumer: Industrial grade switches are more durable and suitable for harsh environments, while consumer grade switches are more commonly used in home and office environments.

Selection Points

The following factors are worth considering when choosing the right pushbutton switch:

* Installation: Choose the right type of installation based on specific needs, such as panel mount, recessed mount, etc.

* Contact configuration: Determine the number and type of contacts required to meet the needs of a specific application.

* Voltage and current rating: Ensure that the switch can withstand the expected operating voltage and current.

* Protection ratings: such as IP ratings to ensure the reliability of the switch in a given environment.

* Longevity and durability: Choose high-quality switches that can withstand a greater number of operations and lower maintenance costs.

* Response time: Fast-responding switches are suitable for applications that require real-time control.

* Colour and marking: Choose the right colour and marking symbol for your environment and personal preference.

* Compatibility: Ensure compatibility of the selected switch with existing systems or equipment.



EKPB2 Series Push Button Switches

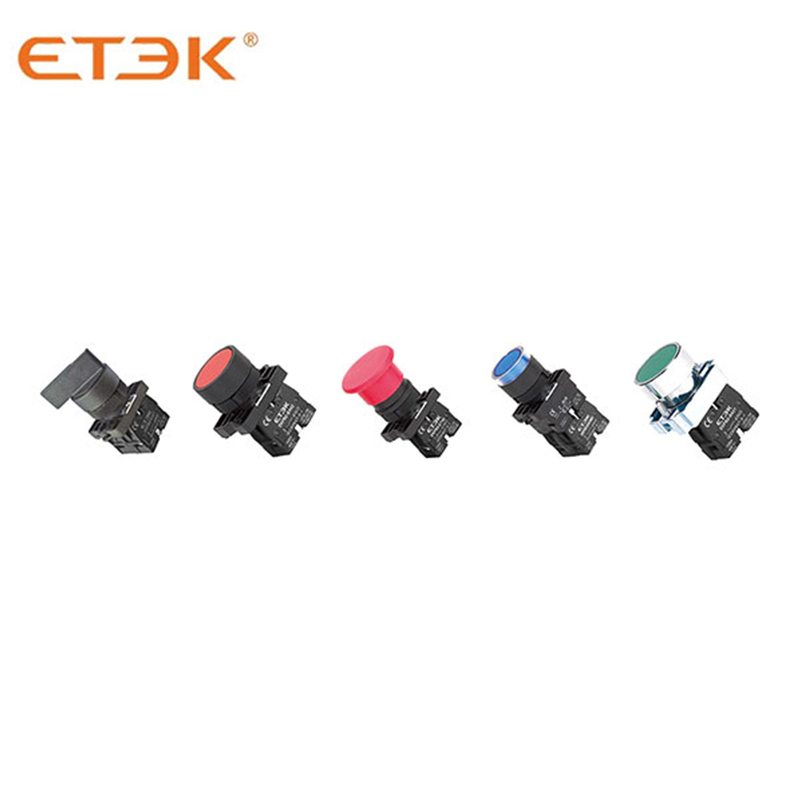

Designed for industrial applications, the EKPB2 Plastic Type/Metal Type 22mm Push button Switch is widely used for controlling AC 50Hz or 60Hz circuits rated for 380V or less, and DC operating voltages of 220V or less. This series of switches is ideally suited for controlling magnetic starters, contactors, relays and other electrical circuits. In addition, the EKPB2's pushbutton indicator provides clear status indication wherever indicators or signals are required, ensuring that the status of the equipment can be seen at a glance.The EKPB2 pushbutton switches comply with the IEC60947-5-1 standard and offer reliable performance and good compatibility for a wide range of industrial environments.



Conclusion

Pushbutton switches are basic and widely used electrical components that play an indispensable role in a variety of equipment and systems, and the EKPB2 pushbutton switch is an ideal choice for industrial control due to its excellent performance and versatile applicability. By understanding its working principle, main types and selection points, customers can more scientifically choose the switch that suits their needs, thus improving equipment performance and user experience. We hope this article can provide valuable reference for your purchase.
